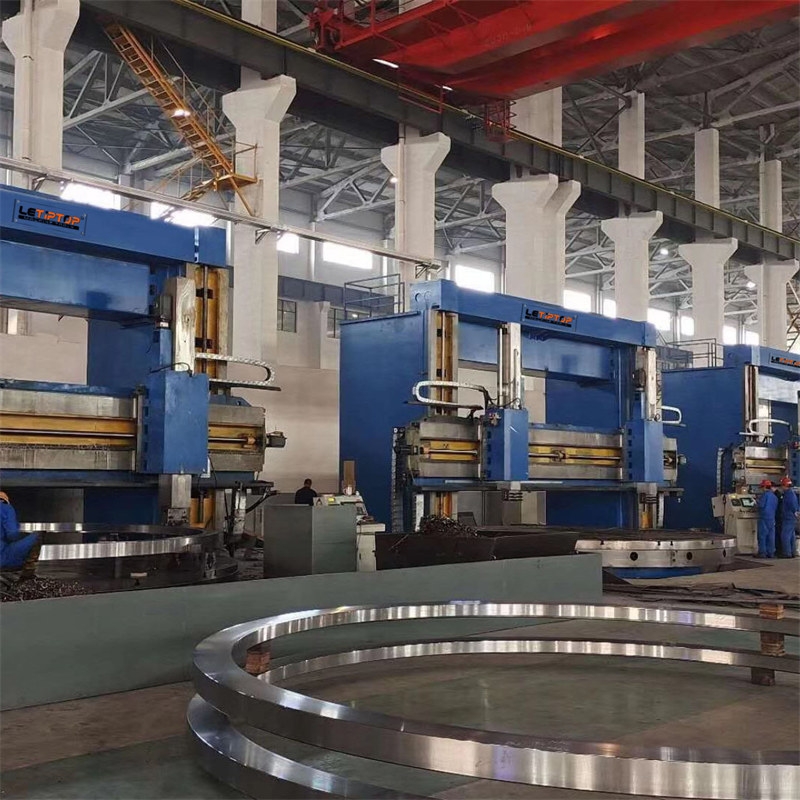

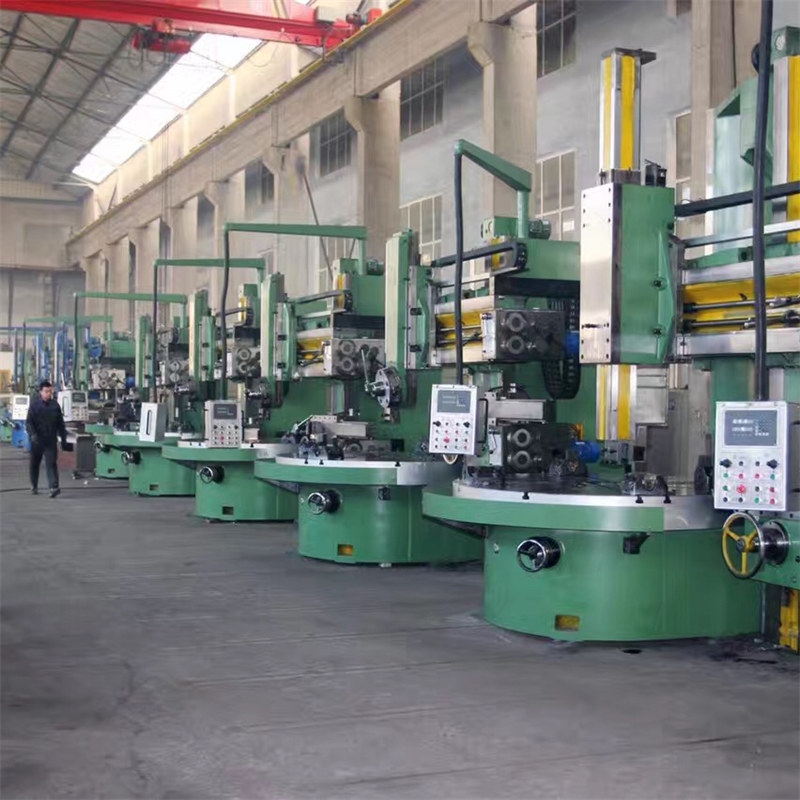

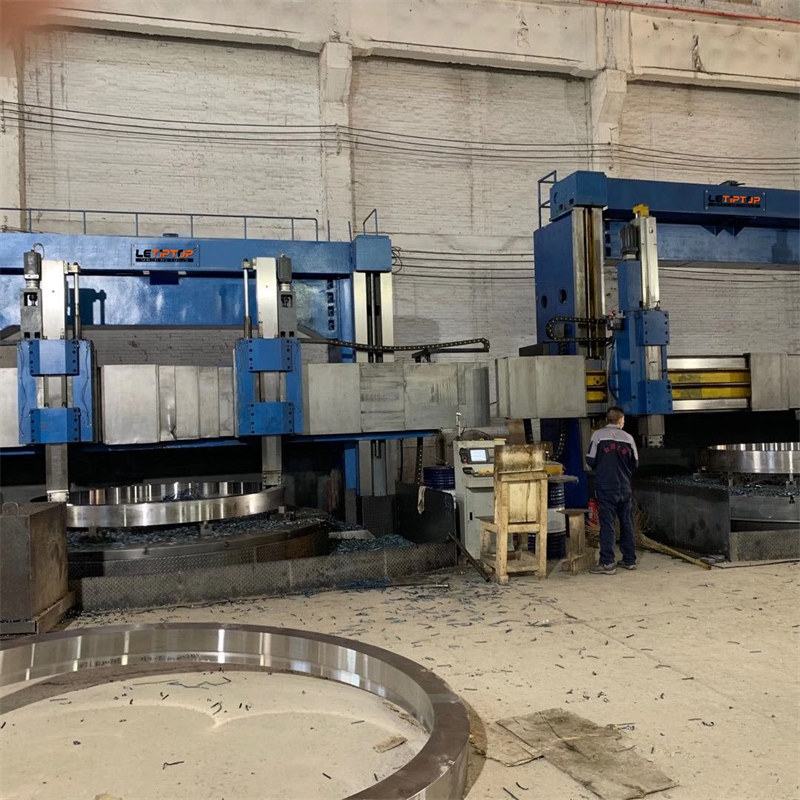

Vertical Lathe is large-scale metal turning machine tools. It is widely used to machining large and heavy-duty workpieces with large radial dimensions, small axial dimensions and complex shapes. Such as cylindrical surface, end face, conical surface, cylindrical hole, conical hole of various discs, wheels and sleeves. It can also be machined spheroidal, contoured, milling and ground with special additional attachment. Compared with the horizontal lathe, the spindle axis of the vertical lathe is vertical, and the table top is in a horizontal plane, so the clamping and alignment of the workpiece is convenient. This arrangement reduces the load on the spindle and bearings, so the vertical lathe can maintain working accuracy for a longer period of time.

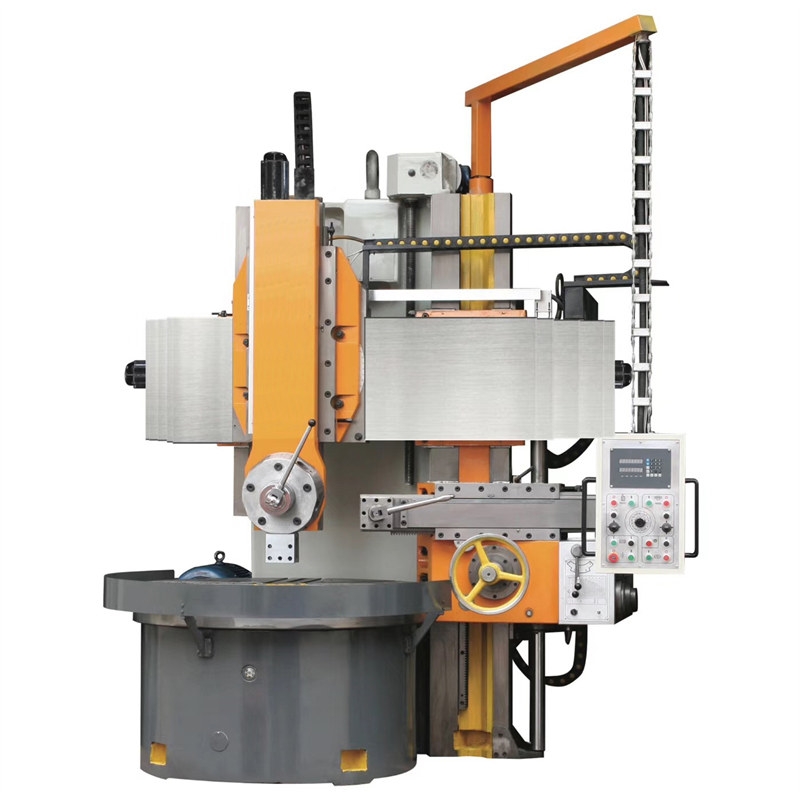

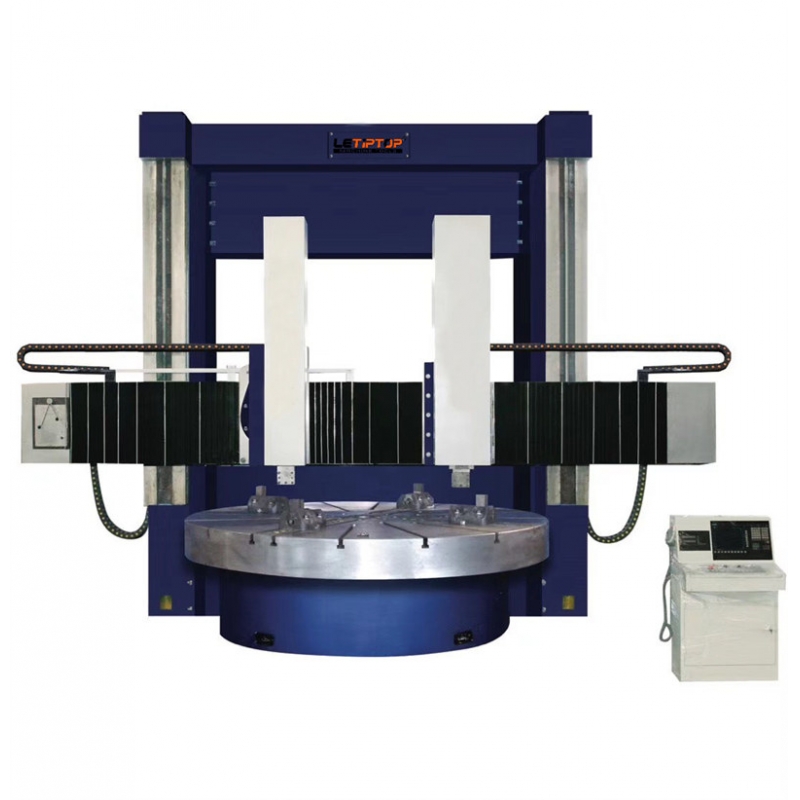

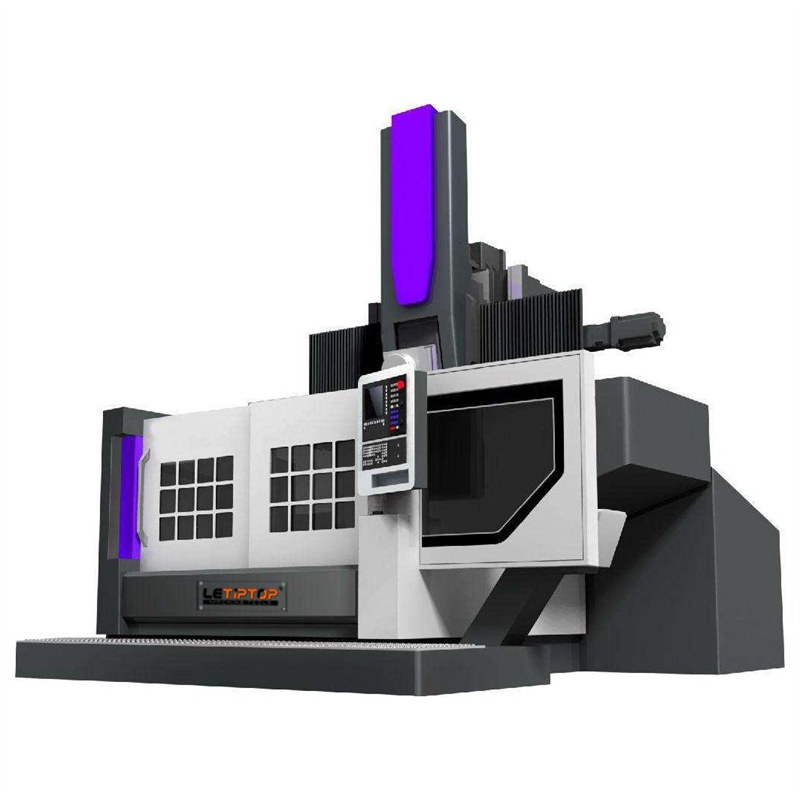

● NC or CNC Vertical Lathe Machine

● High-strength and low stress cast iron for machine body.

● The gear material is 40Cr with high frequency quenching treatment. The hardness reaches HRC40-45. The tooth surface is ground, and the precision can reach grade 6 which can reduce machine vibration, noise and improve the machine efficiency and reliability.

● The contact surface of the beam and the column rail is adhered with the PTFE wear-resistant rail soft belt, which has a small friction coefficient and improves the service life of the machine greatly.

● The beam can be moved on the column rail. Lead screw for lifting. Stable transmission, small friction, low noise and high reliability.

● The lever mechanism beam clamping system to ensure safety and reliable.

● The cast iron working table with symmetrical distribution in geometric shape to ensure the smooth movement within the rated speed.

● Machine working noise: ≤85 dB
